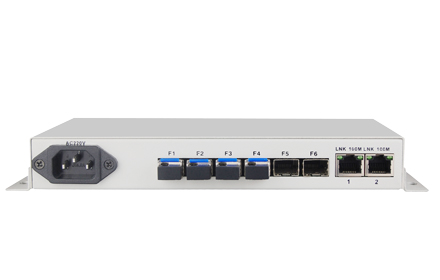

2*FE+6*100 base-S/LX Ethernet Switch

Type:FC6M-F2 Message

Description:2*FE+6*100 base-S/LX Ethernet Switch，can ever under 6 fiber direction FE fiber media converter

Product Description
           The device is Ethernet IEEE802.3 media transceiver to achieve media conversion or extending network transmission distance between two kinds of media which are 10/100base-T UTP and 10/100base-FX or 10/100 base-T UTP and 10/100base-FX

              The device uses 1X9 fiber modules which supports multimode or single mode dual fiber bi-directional single fiber. The transmission distance is 2km max on MMF and 100km max on SMF. Standard in-stock fiber interface is SC. ST and FC available upon requests. The device provides 1-2Channel 10M/100M Ethernet interface master fiber interface and backup interface. This four Ethernet interface is switch interface can be cascaded through 6 fiber interface convenient for chain group networksupport VLAN.

Functional Properties



Ø Automatically adapt to 10Mbps and 100Mbps environment upgrade network easily;

Ø   Device provides 2 Ethernet UTP 6 Ethernet optical port

Ø Support full-duplex and half duplex network communication with auto-negotiation capability;

Ø   The Ethernet interface supports jumbo frames (1916bit) which can match with the switch product complied with IEEE802.10 protocol

Ø   Division of VLAN base PORT this method does not affect the remote device

Ø   802.1Q VLAN Division at this time the local and the remote interface can be divided into the same VALN

Ø   Support the QinQ and MAC-In-MAC VLANS .



Technical Parameters

 u  Ethernet UTP Interface

    Interface rate:              10/100 M half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

    MAC Address Capability: 4096

    Connector:                  RJ45 support Auto-MDIX

u   Optical Ethernet interface

    Wave Length:          1310nm 1550nm

    Interface rate:              100 M half/full duplex

    Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

    MAC Address Capability: 4096

    Connector:                  FC/SC

    Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors fittings and patch panel.

   Transmission distance may also be limited by fiber optic bandwidth.

u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

u   Dimension

    Product Size :       216X140X31mm( WX DXH))

    Simple packaging : 274X193 X84mm ( WX DXH)

   Piece Weight: 1.8KG

u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

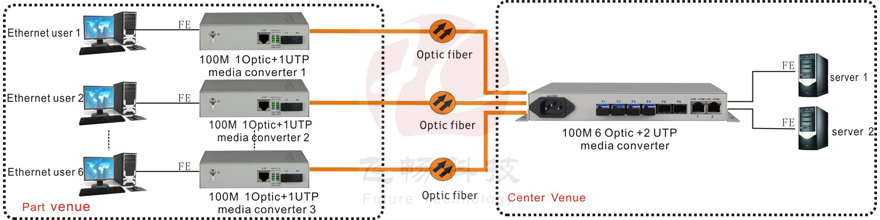

Application Scheme

Applications
