Hello, Welcome to FCTEL Technology Co.,Ltd
National service hotline:+086 0571-87007055/56/57 CN

WE ONLY FOCUS ON TRANSMISSION AND ACCESS

Products center

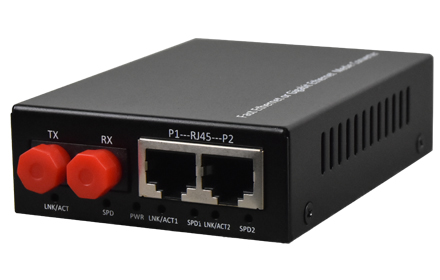

2FE Fiber Media Converter（external power）

Type:FCM-F2L-B Message

Description:2 * 10 / 100M fiber media converter，standard 0-25KM ，external power supply, and three anti-function.

Product Description
  This series of products are IEEE802.3 Ethernet media converter, can realize 2*10/100Base-T twisted pair and 10/100Base-FX two medium conversion or extend the network transmission distance, is mainly used for optical fiber network transmission distance (20/40/60/80/120 km), fully support the 10/100M transmission rate.
Functional Properties
? Automatically adapt to 10Mbps and 100Mbps environment, easy to upgrade the network;
? Monitor with anti-crash auto-reset function for high-definition network cameras and other heavy duty applications;
? Support full and half duplex network communication, with auto-negotiation capability;
? VLAN support the transmission of long packets can support IEEE802.1Q protocol products matching switches used to support up to 1600-byte Ethernet packets;
? Support FX half / full duplex and link failure alarm switch selection;
? Support UTP crossover Direct Connect adaptive, easy system commissioning and installation;
? low power consumption. Low heat, stable operation for a long time;
? External AC220 / 5V power adapter, can also be an external DC-48V / 5V power adapter;
Technical Parameters
u  Ethernet UTP Interface
 Interface rate:    10/100 M, half/full duplex auto-negotiation
 Interface Standard:    Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
 MAC Address Capability:    4096
 Connector:    RJ45, support Auto-MDIX
u  Optical Ethernet interface
 Wave Length:       1310nm, 1550nm
 Interface rate:       100 M, half/full duplex
 Interface Standard:       Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
 MAC Address Capability:       4096
 Connector:       FC/SC
    Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.Transmission distance may also be limited by fiber optic bandwidth.
u  Working environment
Working temperature:   -10°C ~ 50°C
Working Humidity: 5%~95 % (no condensation)
Storage temperature: -40°C ~ 80°C
Storage Humidity:    5%~95 % (no condensation)

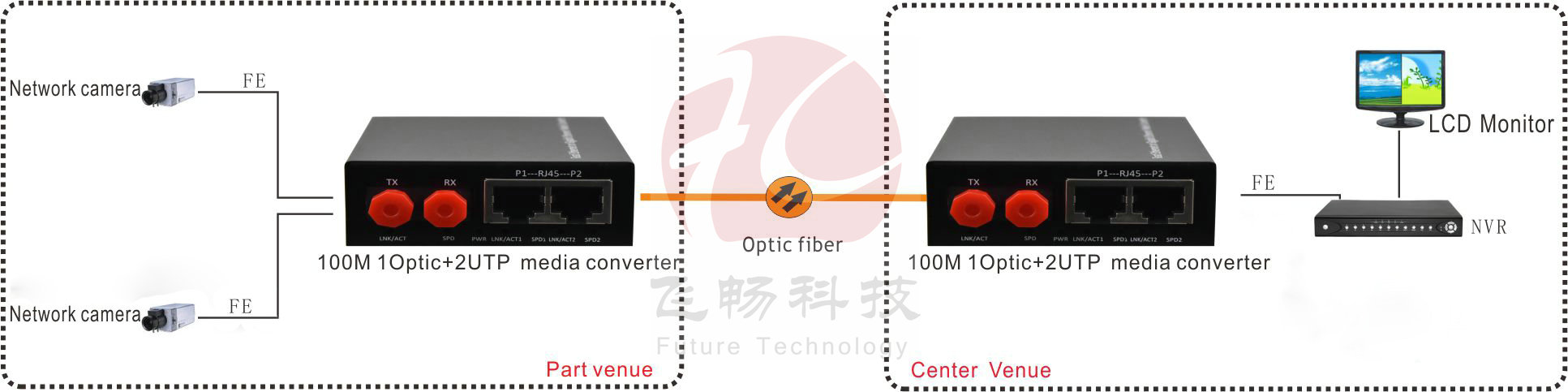

Application Scheme

Applications


DataSheet Download
?
