Products center

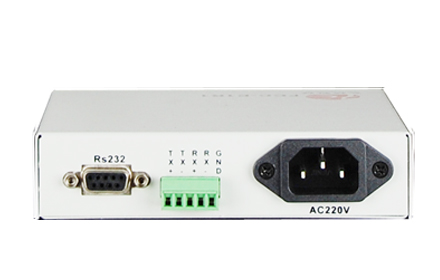

Full Signal RS232 Fiber Modem

Type:FCP-R1q Message

Description:Full Signal RS232 Fiber Modem ,Support all RS232 handshake signals (DCD, DTR, DSR, RTS, CTS, RI) to the optical fiber transmission

Product Description
              This series is a versatile device supports asynchronous RS-232 communication interface Fiber Modem, with all supporting data RS232 handshake signals (DCD, DTR, DSR, RTS, CTS, RI) optical fiber transmission to the remote. The device is connected to a remote terminal unit (RTU) to the host (HOST) or the best choice for distributed data acquisition system (SCADA) controller with high performance and low cost. Serial port communication rate up to 256Kbps, for mobile base stations remote signal, power remote signal, serial telephone line Modem, transmission, and network monitoring and other occasions.
            As a result of the fiber as a transmission medium, you can completely avoid the threat of harsh environments lightning, surges, electromagnetic interference and other communication devices while eliminating the investment surge lightning protection devices when the original use of copper
Functional Properties
? have the ability to automatically detect the serial signal baud rate
? serial port communication rate up to 256Kbps
? support all RS232 handshake (DCD, DTR, DSR, RTS, CTS, RI) to fiber optic remote
? Wide input voltage range (DC7V-DC36V), and automatically detects the polarity of the DC power input
? serial port interface 600W surge protection, 1500V electrostatic protection
? can form E1 serial converter (A) --- E1 Fiber Modem (B) --- Fiber Serial Modem (C) topology
Technical Parameters

u  Fiber

         Multi-mode Fiber

    50/125um, 62.5/125um,

    Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

    Transmitting power: -12dBm (Min) ~-9dBm (Max)

    Receiver sensitivity: -28dBm (Min)

    Link budget: 16dBm

        Single-mode Fiber

    8/125um, 9/125um

    Maximum transmission distance: 40Km

    Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

    Wave Length: 1310nm

    Transmitting power: -9dBm (Min) ~-8dBm (Max)

    Receiver sensitivity: -27dBm (Min)

    Link budget: 18dBm

u   Serial interface

    Standard

    EIA/TIA-232 RS-232 (ITU-T V.28)

    Serial Interface

    DCE interface: Hole type DB9

    DTE interface: Needle type DB9

u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

u   Dimension

    Product Size:         103X93X28mm(WXDXH)

    Simple packaging:   200X176X55mm(WXDXH)

    Piece Weight :      1.2KG

 u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

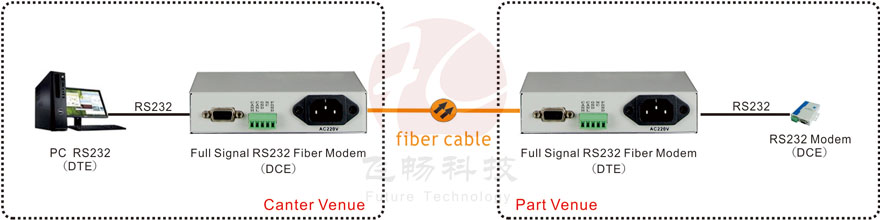

Application Scheme

Applications


DataSheet Download
?
